Technical Specifications:
'' Ultime '' -'' Ultime Ti ''
Forged 6061 T6 aluminum cranks, anodized
Lengths: - 170 - 172, 5 - 175 - (165 on order)
Standard bearings / hybrids (2RS)
Crank pins, washer and bolt: HRC50 chromoly steel /
Grade 5 titanium
Internal gears: Steel treated, nitrided HRC50 and polished
Chainring support / Planetary housing: 6061 T6 anodized aluminum, CNC machined
Aluminum indexed chainrings: 7075 T6 black anodized, CNC machined
Weight of the crankset `` Ultime Ti '': 1150 gr (Without the adapter)
Aluminum bottom bracket adapters: 6061 T6 CNC machined, anodized
(see list below)

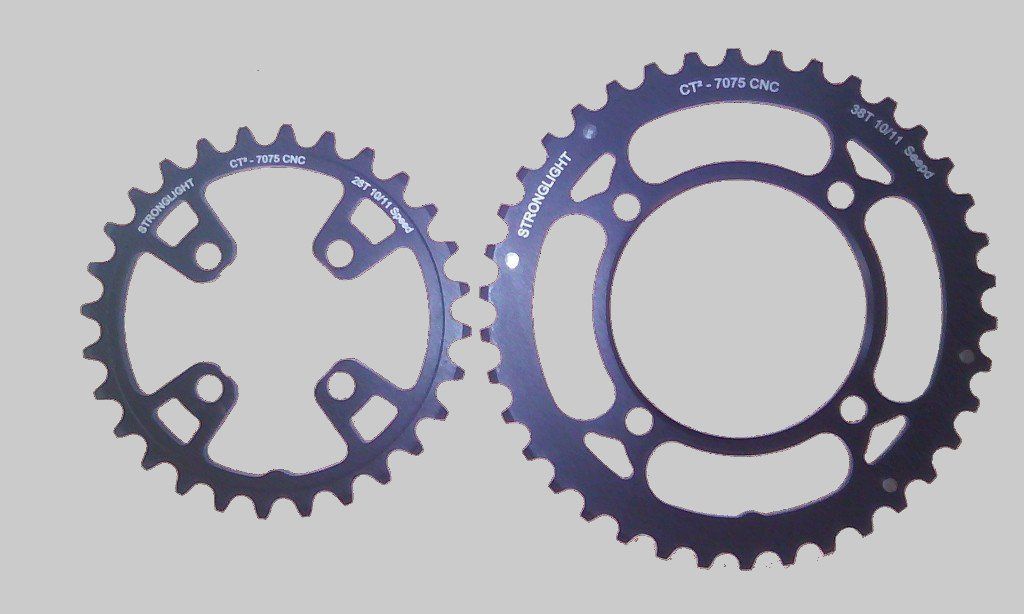

Chainrings :
Road - Triathlon - MTB - Cyclo-cross - Track - City
Small chainrings : 56 mm center distance
- 21
- 23
- 25
- 27
- 28
- 29
- 30
- 32
*
Large chainrings : 91 mm center distance
- 32
*
- 35
- 36
- 37
- 38
- 39
*
- 40
*
Chairings Track
*
: 91 mm center distance
- 35
- 36
- 37
- 38
- 39
- 40 -
43
-
45
*
-
48
*
- 49
*
- 50
*
*
On demand

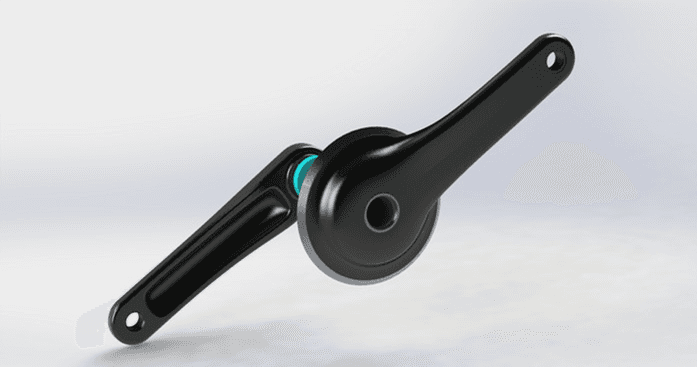

(Non contractual photo)
Compatibility
With the multitude of “standard” bottom brackets on the market, We havedesigned, engineered and manufactured adapters for: BSA / BSC - Italian - BB30 - Pressfit30 - BBRight - T47 - Carbonbike - Look
These allow you to mount the '' Ultime '' crankset on almost all bikes: Road - Chrono / Triathlon Track - Cyclo-cross - Gravel - Mountain bikes and City bikes available on the market.
N.B. : Impossible on BB90 - BB95 - BB86 and BB386 (too wide - Q factor too important).
